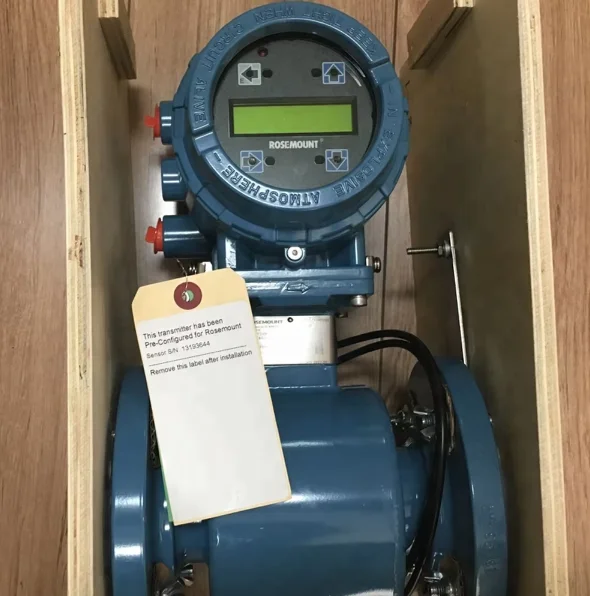

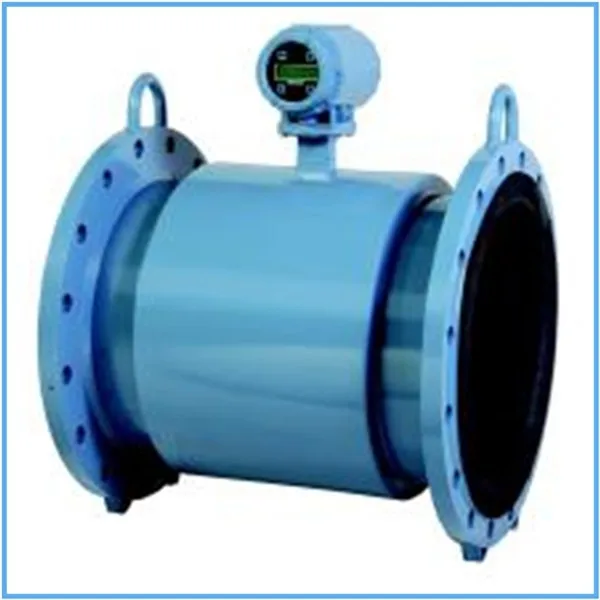

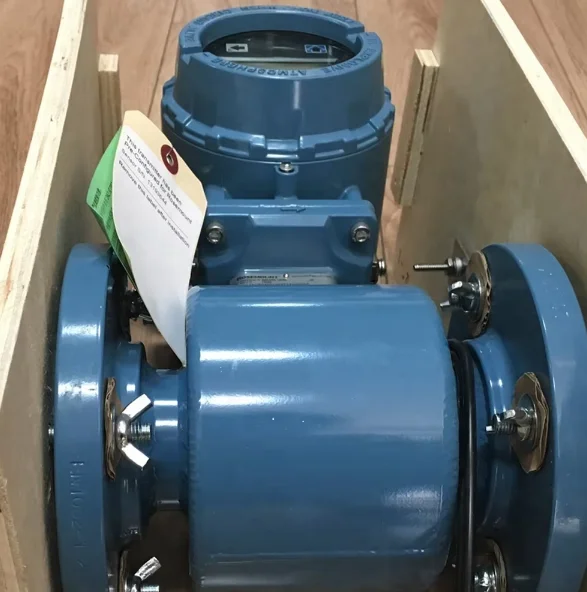

The Rosemount 8750W Magnetic Flow Meter reduces lifecycle costs and unplanned shutdowns by accurately measuring water and wastewater flows in a variety of utility applications. The 8750W is supported by intelligent diagnostics that help users take
advantage of improved installation, maintenance and process-management practices. With fully welded sensor construction and anisolated, replaceable terminal block the 8750W is the most dependable meter available for utility and water applications.
|
Item
|
Value
|
|
Model
|
8750W
|
|
Brand
|
Emerson
|
|
Line Size
|
0.5" – 48" (15 mm – 1200 mm)
|
|
Liner Material
|
PTFE, Neoprene
|
|
Electrode Material
|
Stainless Steel, Nickel Alloy
|
|
Flange Standard
|
ANSI, EN, GB , AS4087, AS2129, JIS , AWWA
|
|
Flange Rating
|
Up to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D
|
|
Accuracy
|
Standard 0.5%; Optional High Accuracy 0.25%
|
|
Diagnostics
|
Empty Pipe, Grounding/Wiring Detection,
High Process Noise, Coated Electrode Detection,
Smart Meter Verification
|
|
Transmitter Output
|
4-20 mA Digital Electronics
(HART Protocol), Modbus RS485
|
|
Paint:
|
Polyurethane
|
