Introduction:
Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition. STG70X products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
Best in Class Features:
o Accuracy up to 0.065 % of calibrated span
o Stability up to 0.02% of URL per year for five years
o Automatic temperature compensation
o Rangeability up to 100:1
o Response times as fast as 100ms
o Alphanumeric display capabilities
o External zero, span, & configuration capability
o Polarity insensitive electrical connections
o On-board diagnostic capabilities
o Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
o Full compliance to SIL 2/3 requirements as a standard.
o Modular design characteristics
Description:
The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linking process pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.
Communications/Output Options:
o Honeywell Digitally Enhanced (DE)
o HART ® (version 7.0)
o FOUNDATION™ Fieldbus

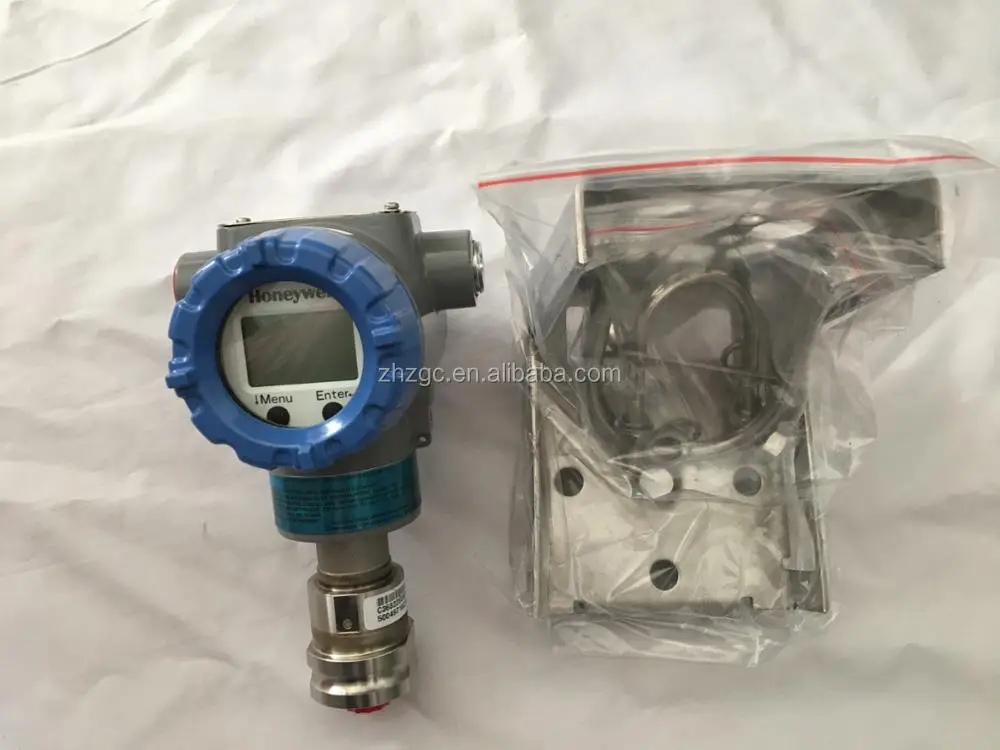

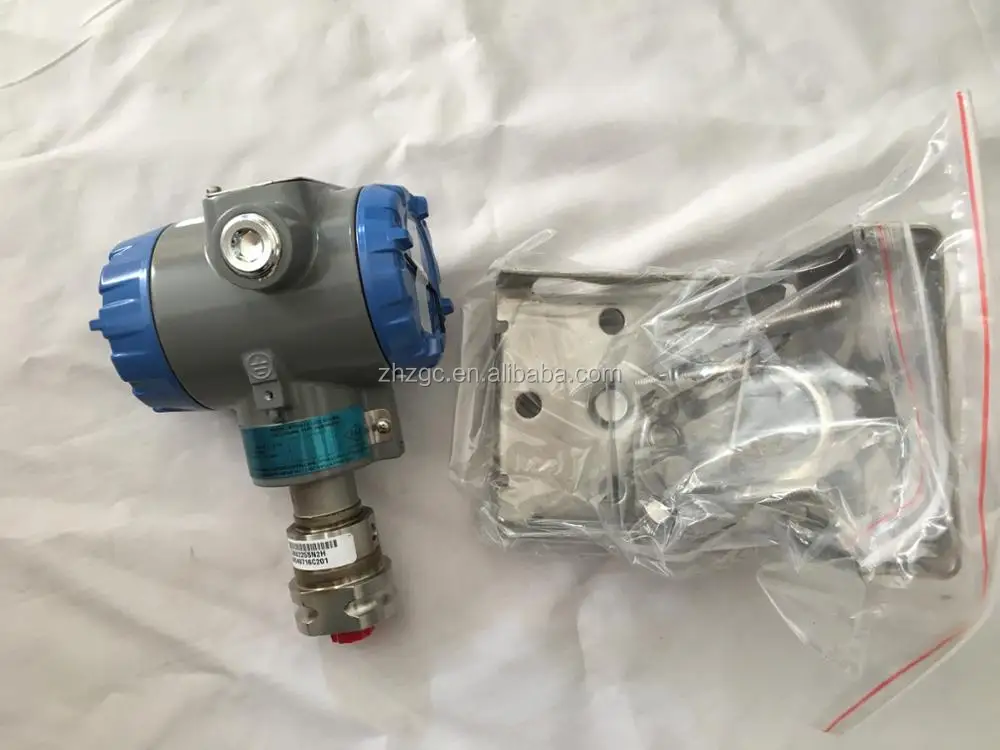

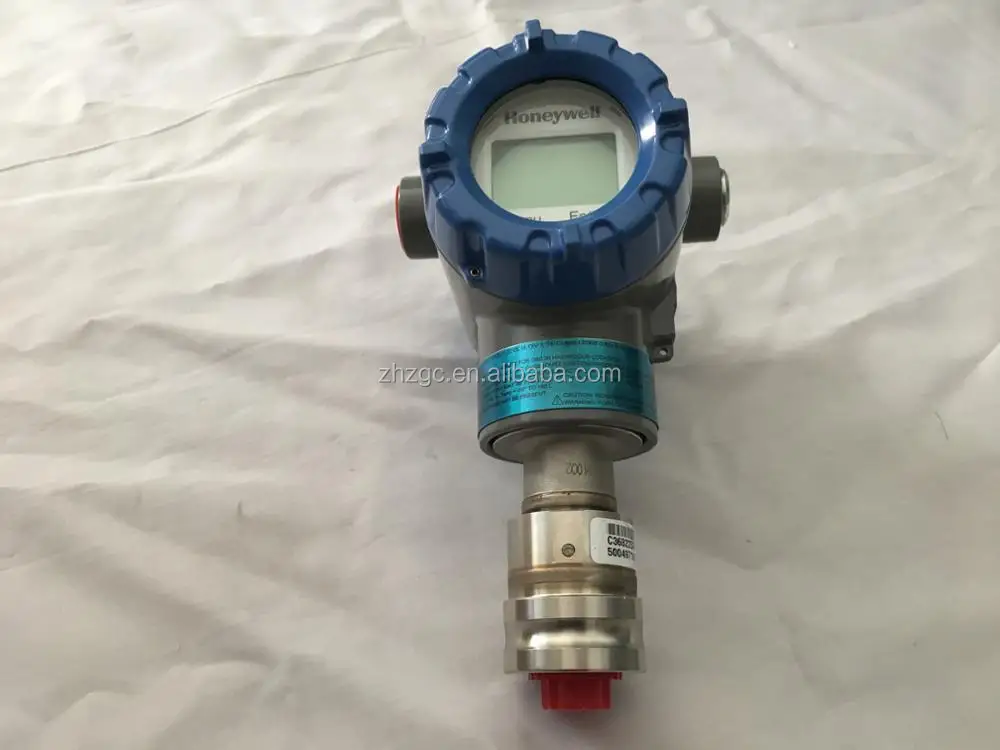

Physical pictures:

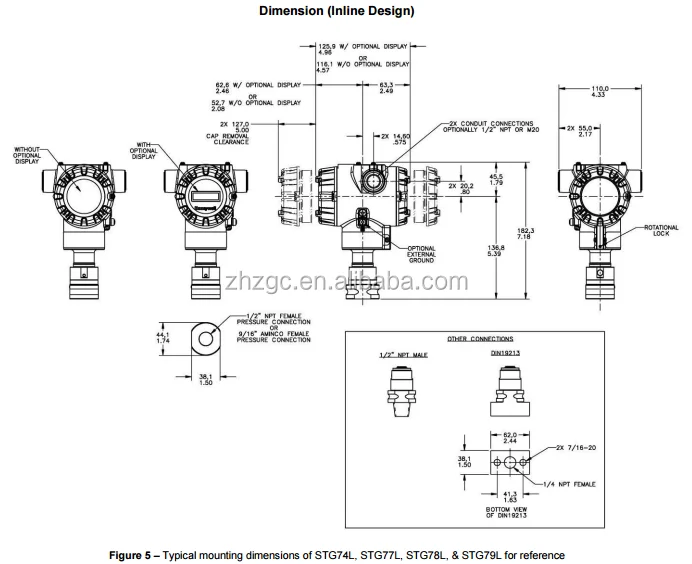

Reference Dimensions: millimeters/inches

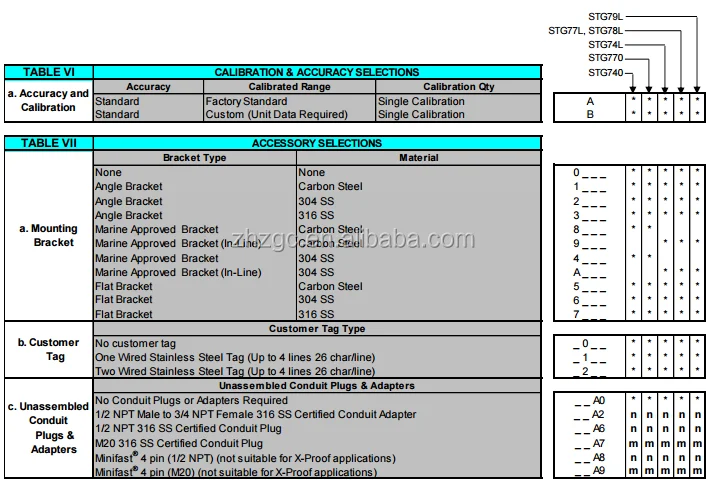

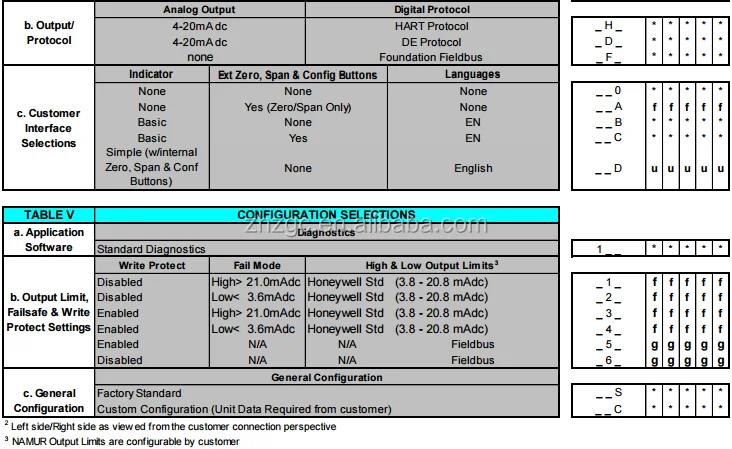

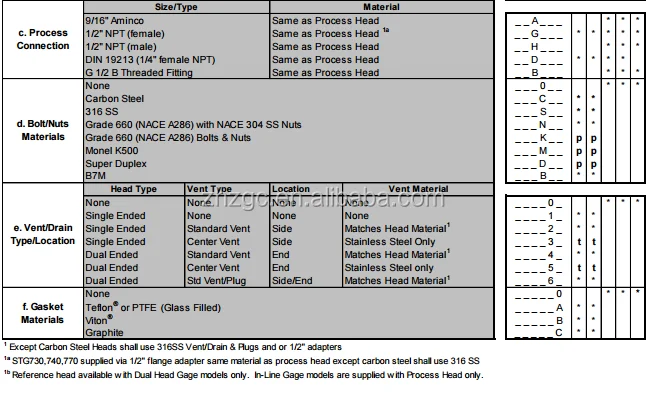

Ordering informations:
If have interested it, welcome to contact us at any time
