Introduction:
Honeywell's STT170 series of intelligent temperature transmitters provide an economical solution for temperature sensing applications. Compared with the direct connection of the temperature measurement points, STT170 series of intelligent temperature transmitter more accurate, safe and reliable, while reducing the wiring costs. This temperature transmitter in the user set the upper and lower limits of the temperature signal output is automatically linearized. In addition, the user can also program the set of high and low alarm points, and make it in the sensor failure alarm. When ordering STT170 series intelligent temperature transmitter, users can order with Honeywell's temperature sensor and protective sleeve to form a complete direct use of the temperature measurement device.
STT17H Features:
HART / 4-20mAl output
Thermal resistance, thermocouple, resistance value or millivolt input
Single sensor or dual sensor (difference or average) input
B-type DIN rail or head mounting
You can connect HART multi-point mode
The sensor fault signal complies with NAMUR NE43
Use the STT17C configuration tool and PC PC or HART field configuration to it to configure
Computer isolation

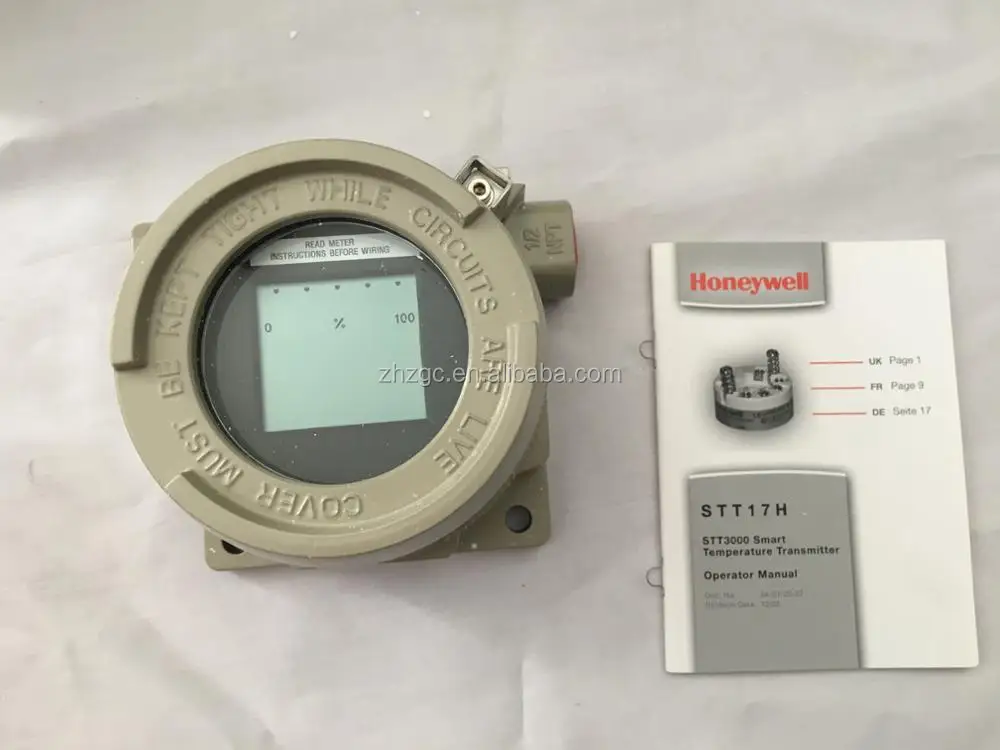

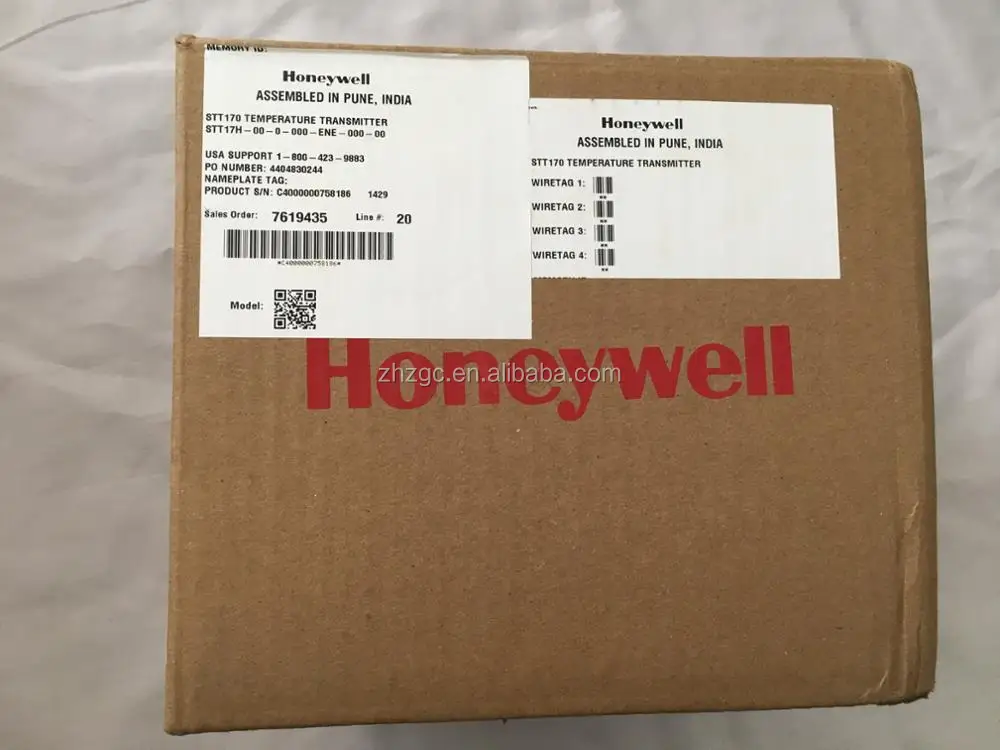

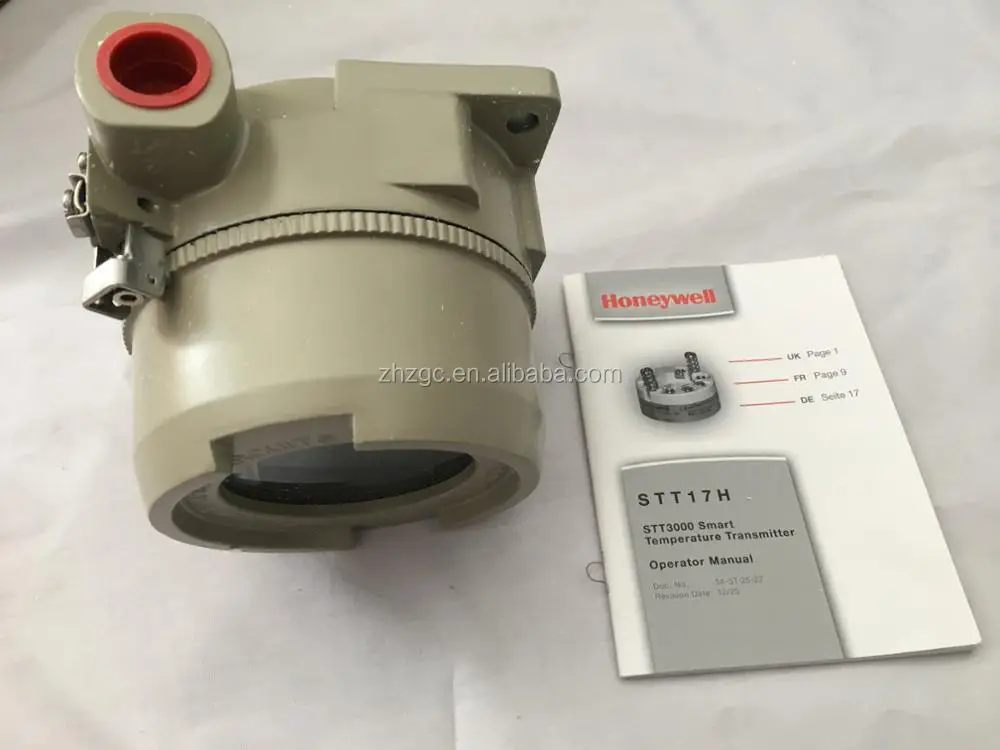

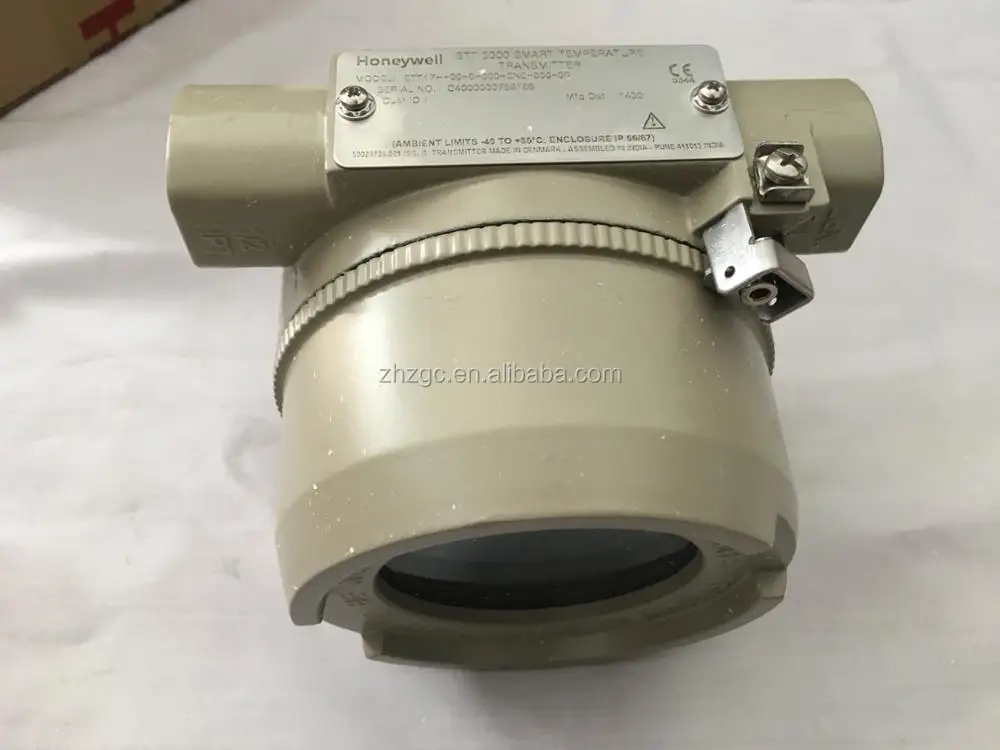

Physical pictures:

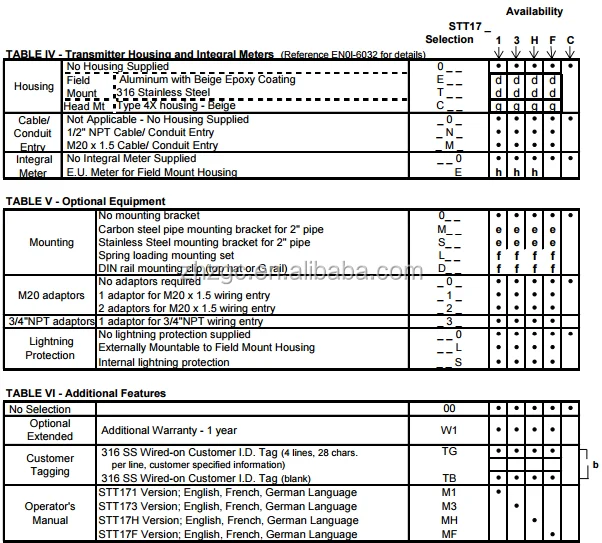

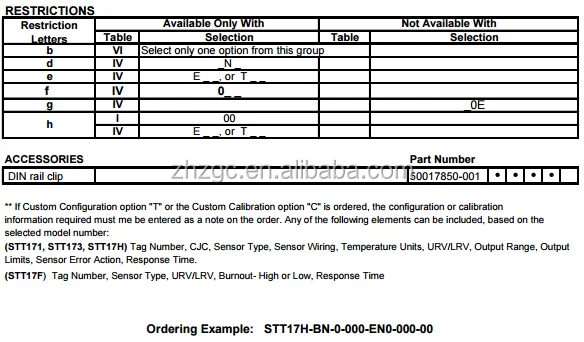

Ordering informations:
If have interested it, welcome to contact us at any time
