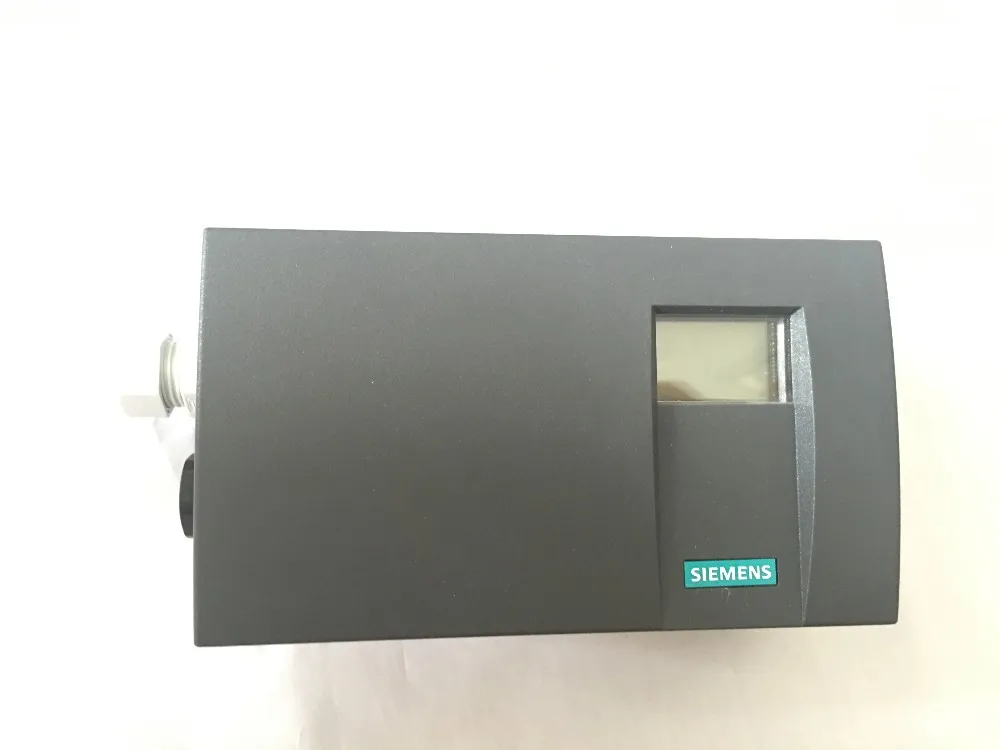

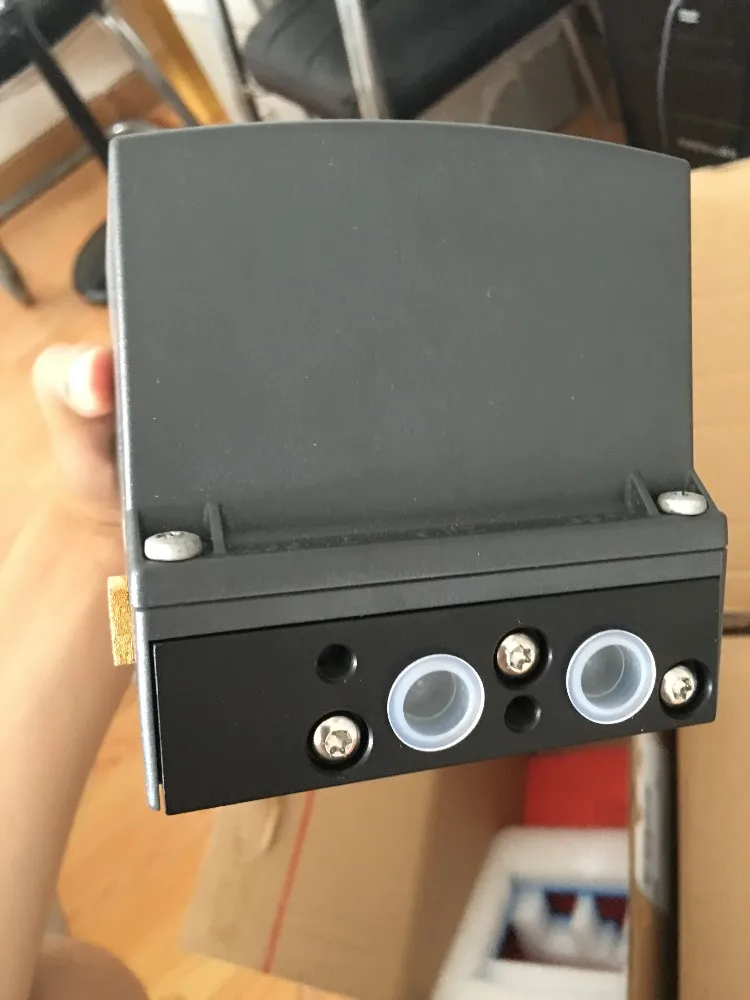

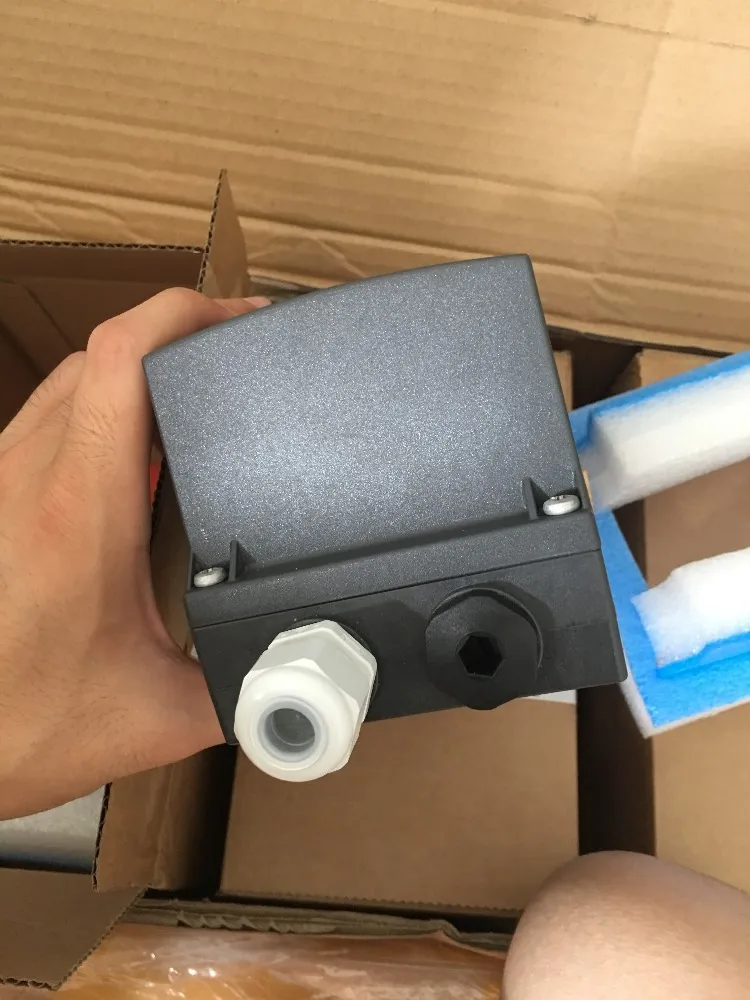

Designed in a Macrolon, aluminum or stainless steel casing, the SIPART PS2 positioners are suitable for all applications. Designed as standard with IP66 or NEMA 4x degree of protection, they are resistant to even the most hostile environments. SIPART PS2 is also available with an explosion-proof enclosure with EExd IIC T4-T6 type of protection.
SIPART PS2 is equipped with comprehensive diagnostics functions as standard. In order to provide advanced warning of expensive failures during operation, our positioners continuously check the actuator and valve.
SIPART PS2 exhibits its communicative side in dialog with higher-level systems. It can be integrated into the communications landscape via PROFIBUS PA, Foundation Fieldbus or HART protocol. With HART and PROFIBUS, it is also possible to apply SIMATIC PDM to clearly display and document saved trends, histograms, as well as commissioning and operating data.
If you would like to test your solenoid valve or replace its function by a positioner, SIPART PS2 prevents valves from closing or monitors open/close valves as an "intelligent solenoid valve.
By means of a regular partial stroke test, SIPART PS2 ensures that ESD valves (emergency shutdown) and other open/close automated valves remain movable in the event of an emergency. The attached solenoid valve can also be tested.
Detail
| Setpoint signal: |
0/4–20 mA analog, HART, PROFIBUS PA
or Foundation Fieldbus protocol |
| Stroke range: |
3 mm to 130 mm 0.1 inch (1/8”) to 7.9 inch
(7.5”) (larger strokes on request) |
| Slewing angle range: |
30° to 100° |
| Ambient temperature: |
-30 °C to +80 °C (-22 °F to 176 °F)
(other temperature ranges on request) |
| Required air quality |
Class 2 in accordance with ISO 8573-1 |
| Max air bleed in settled state |
< 0.036 m3n/h (0.02 scfm) |
Benefits
Standard Macrolon enclosure to IP66/NEMA 4x protection, with optional aluminum or
stainless steel enclosure
Versions with external non-contacting travel sensors
High flexibility in the stroke range from 3 to 200 mm (0.1 to 7.9 inch) (more on request)
Communication via PROFIBUS PA, Foundation Fieldbus or HART
Intelligent diagnostics functions
EEx d explosion-proof version
