FEATURES
Model YVP110 FOUNDATION fieldbusTMValve Positioneraccepts digital communication to control a pneumaticactuator mounted to a control valve.
The YVP110 positioner minimizes transmission lag,improves valve characteristics and response andreduces flow-pressure variation effects.
Setup can be done more easily and interactively byusing YVP Management Software YVP20S“ValveNavi”.
Supply Voltage:
9 to 32V DC for general use and flameproof type
9 to 24V DC for intrinsically safe type Entity model
9 to 17.5V DC for intrinsically safe type FISCO model
Conditions of Communication Line
Supply Voltage: 9 to 32V DC
Supply Current: 17 mA (max)
Output Signals and Pressure Gauge Scale:
No gauge in standard. Pressure gauge can be
selected as option. The supply pressure unit on the
name plate for non-gauge model is Pa.
| Brand |
Yokogawa |
| Model |
YVP110 |
| Single Acting Actuator |
20 to 60 psi (140 to 400 kPa) |
| Double Acting Actuator |
30 to 100 psi (200 to 700 kPa) |
| Vibration Limit |
4 mm at 5 to 15 Hz; 2G at 15 to 2000 Hz |
| Shock limit |
10G |
| Manual Operation |
Available using Auto/Manual (A/M) transfer switch |
| Zero Adjustment Range |
-15 to 85% of span |
| Span Adjustment Range |
Within 300% of span |
| Ambient Temperature Effect |
0.08% of Span/°C |
| Position Effect |
0.3% of Span/90 deg |
| Vibration Effect |
2% of Span at 2G (15 to 2000 Hz) |

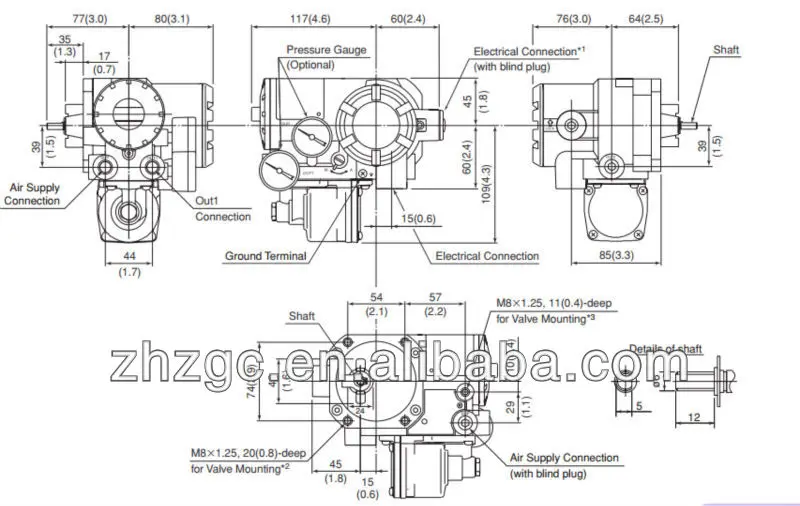

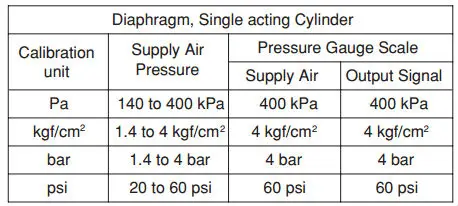

For Single Acting Actuator

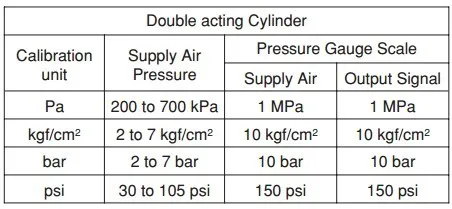

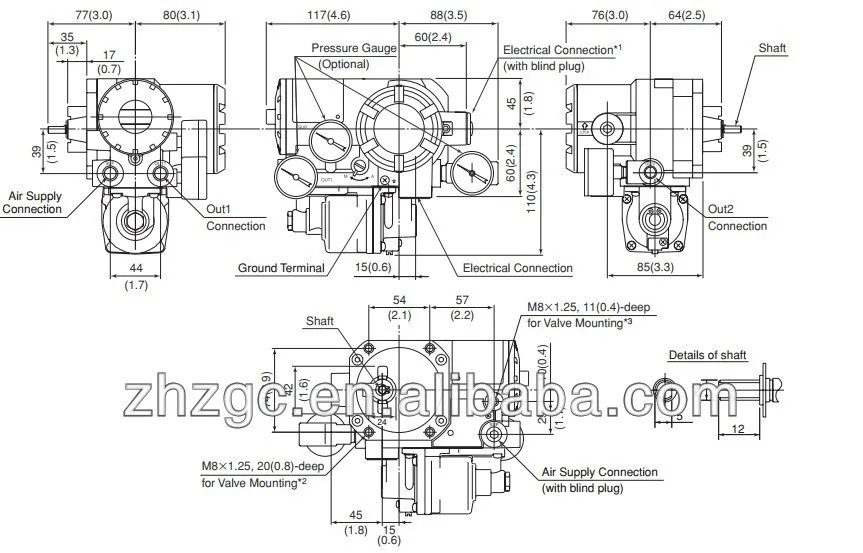

For Double Acting Actuator
